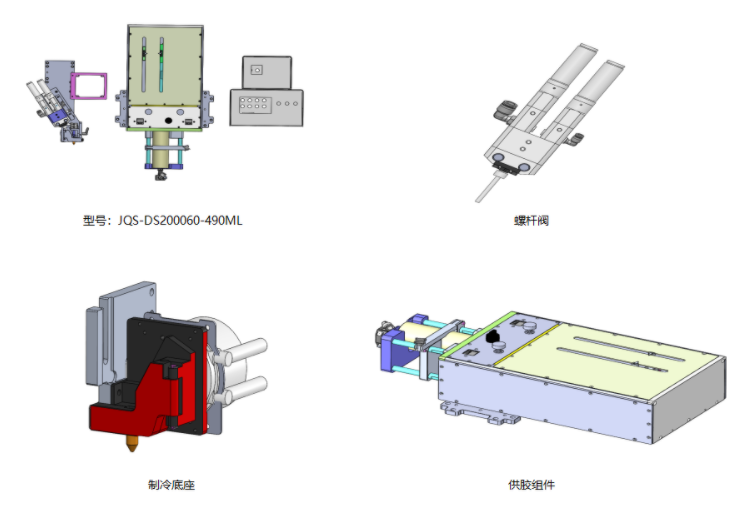

Model: jqs-ds200060-490ml
Advantages:
1. The control interface displays the information of glue pressure, glue output and lack of glue in real time, so as to observe the working state;
2. The upper and lower limit of glue pressure, warning line of liquid level difference and alarm function can be set on the control interface;
3. Provide the calibration function of glue output speed, calculate the benchmark glue output speed according to the benchmark glue output and motor speed, which is convenient for the calculation of glue output;
4. Provide the function of glue quantity calibration. On the premise of ensuring the glue output unchanged, fine tune the motor speed according to the glue supply quantity, automatically calibrate and compensate, and control the final liquid level difference between the two components of AB glue within 2mm;
5. The two-component glue is not mixed in the pump, so it is easy to clean and maintain;
6. Corrosion resistant composite materials are used in the liquid part to ensure the long-term stable operation of the valve body;
7. The outer part of the refrigeration seat is covered with foam, which can achieve a low temperature of - 10 ℃ at 25 ℃. At the same time, the foam has the function of absorbing water, which can absorb the moisture condensed by cold air;
8. The refrigeration module adopts the door opening and closing structure, and the door lock adopts the snap structure. The operator opens and closes the refrigeration seat to observe the glue state or replace the mixing tube;
9. Provide glue quantity feedback system, detect the liquid level of two glue by displacement sensor, and feed back to valve body controller at the same time, the resolution is 0.01mm;
10. A rubber separating head is designed at the outlet of the two-component rubber barrel, and the two channels of the rubber separating head are respectively designed with a three-way structure rubber discharging device, which is convenient for discharging a section of air at the front end of the glue each time the rubber barrel is replaced.
