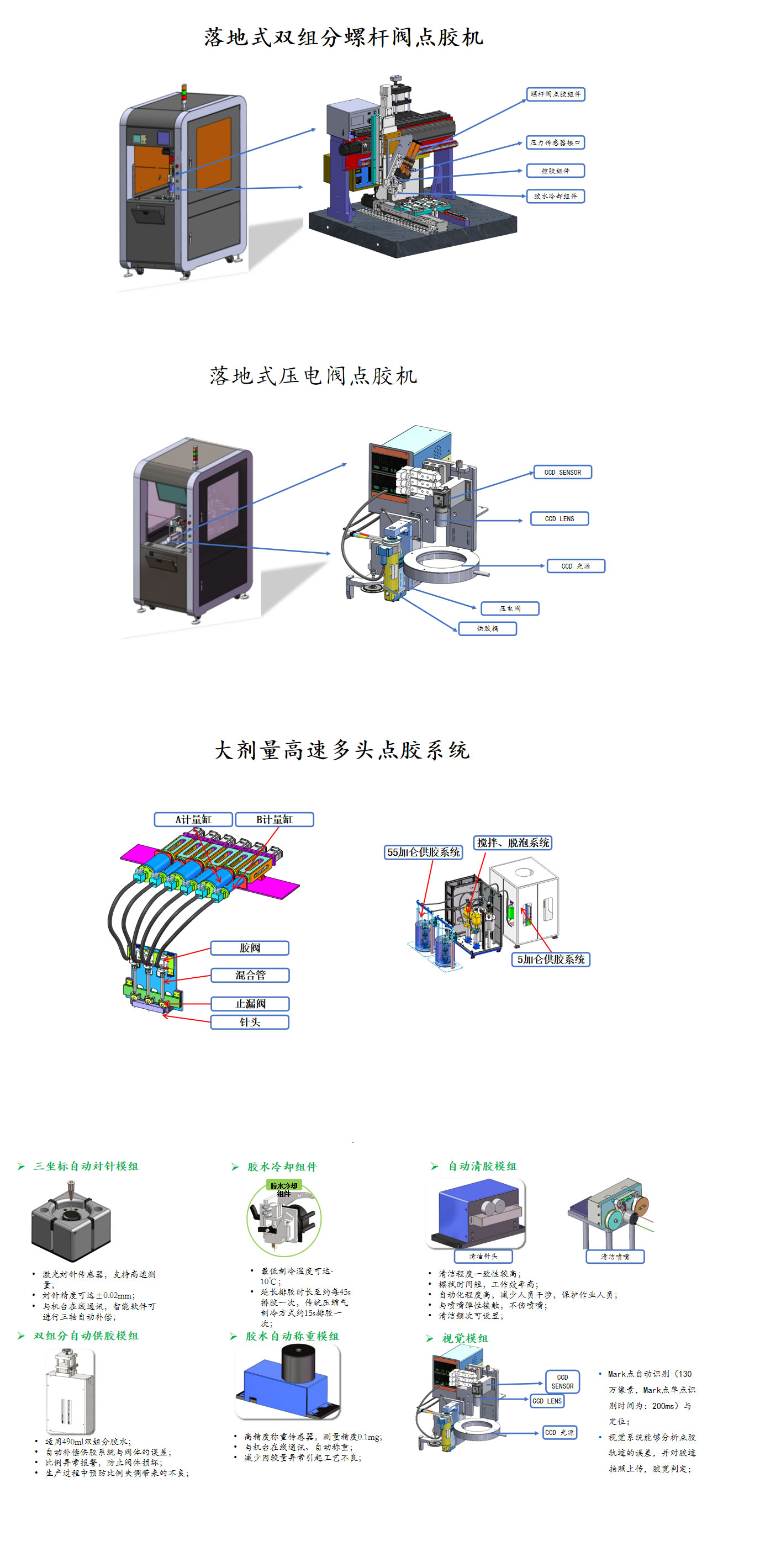

Floor type two component screw valve dispensing machine
Advantages:
1. The stator and rotor imported from Germany are adopted, the distribution ratio of AB glue is 1:1 to 10:1, and the metering accuracy is as high as 0 ± Within 2%, it can transport 1-1 million CPS viscosity glue;
2. Equipped with high precision double liquid screw valve, glue supply system and electronic refrigeration device to effectively reduce the frequency of glue discharge;
Function:
1. The device is equipped with automatic needle alignment function to avoid bad dispensing after needle replacement;
2. The equipment is equipped with laser altimetry to solve the problem of product deformation and dispensing;
3. The equipment is equipped with automatic needle rubbing function;
4. The equipment is equipped with dispensing and weighing function;
Floor type piezoelectric valve dispensing machine
Advantages:
1. Single point, line, surface, arc, circle, irregular curve, continuous interpolation and five axis linkage;
2. Visual positioning, photographing, glue detection and image storage;
3. Non contact dispensing mode;
4. The injection quantity can be accurate to 1nl, which has high repeatability for different viscosities, and the automatic calibration function ensures high repeatability;
5. Realize micro control of 0.28mm/point;
6. The highest dispensing frequency > 3000hz;
7. Nozzle digital quantitative correction function, modular design, easy operation and maintenance, improve production line efficiency;
8. Preheating system, 4 holes for one machine;
9. Automatic glue wiping function, user can set frequency, flexible and simple;
High dose and high speed multi head dispensing system
Advantages:
1. The piston rod is driven by servo motor through double cylinder piston pump to advance synchronously in proportion;
2. The accuracy of quantitative proportioning is within + / - 2%;
3. AB independent control can effectively compensate the deviation of liquid compression ratio;
